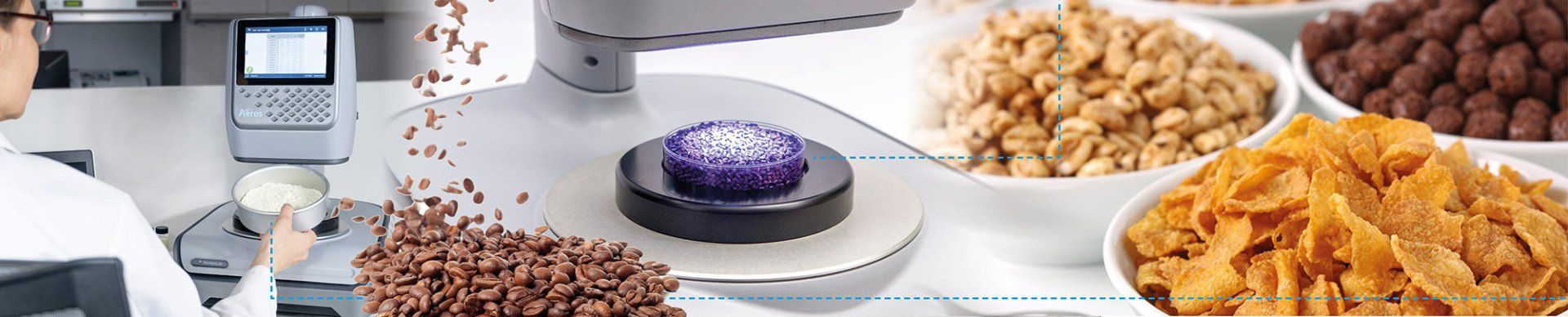

Aeros spectrophotometer:
Non-contact colour measurement
The Aeros® spectrophotometer from HunterLab has integrated quality control software and averages over a large surface area to measure all inhomogeneous samples with non-uniform structure – non-contact, precise and resource-efficient!
Your advantages at a glance
The perfect solution for laboratory & production
-
Non-contact measurement
The sensor detects the sample without contact, without having to measure through plastic or glass.
-
Large surface area
The rotating sample plate captures over 170 cm² of the sample in 35 measurements in 7 seconds. -
Integrated QC software
The EasyMatch QC Essentials quality control software is integrated into the device and provides all the required colour indices and metrics.
-
Intelligent height adjustment
The distance sensor automatically compensates for height differences in irregular samples. -
Smart user interface
Your measurement results can be easily transferred to existing LIMS or SPC systems. -
Uncomplicated & precise
Simple "one touch" measurement reduces training time, optimizes the workflow and increases your productivity.
Smart colour measurement system for various industries
For inhomogeneous products, bulk goods and small parts, the Aeros® is the best choice for colour measurement with maximum connectivity, integrated QC software and robust design. The Aeros® is used successfully in various industries, including for the following use cases:
Snack food, nuts, potato chips, confectionery
The large sample trays of the Aeros are ideal for snack food products such as flips, potato chips, nuts, as well as cookies and fruit gums.
Coffee samples
Colour measurement of coffee, coffee beans, coffee powder, ground coffee according to HCCI, SCAA, L,a,b and own specifications.
Cereals, cornflakes, oat flakes
Exact quality control of all coarse-grained foodstuffs, simple and precise with the Aeros spectrophotometer.
CIE Lab colour measurement of bulk material
Colour measurement of coloured and translucent granules and pellets for quality assurance in the plastics and building materials industry.
Powder - pharmaceuticals, food, chemicals
Powder samples can be precisely measured with the Aeros in a small sample pan. CIE Lab values, whiteness or yellowness – all important indices are preset in the integrated software.
Building materials, stone, lime, roofing materials
Fast spectral analysis in CIE Lab colour values and many other measurement data with the Aeros all-in-one colour measurement system.
How the Aeros® spectrophotometer works
With its automatic height adjustment and the ability to measure and average at 7 readings per second over a large surface area, the modern Aeros® spectrophotometer enables you to precisely measure even large, irregularly shaped samples of all kinds, such as chunky foods like baked goods, nuts or pasta, as well as various raw materials and products from the plastics industry in granulate form.
The Aeros® spectrophotometer from HunterLab simulates human colour perception in accordance with the CIE standard valence system in a matter of seconds in an absolutely reliable, safe and reproducible manner.
Technical data of the Aeros
The perfect solution for laboratory & production
Measuring method
Technical
Performance
Software features
Indices & measurement data
Interfaces
Key data
Measuring principle: Non-contact dual-beam spectrophotometer
Measuring method: Measuring opening downwards; Rotating sample plate (12 rpm)
Working range: 65mm – 140 mm (2.5 in. – 5.5 in.)
Measuring time: 5 seconds (1 measuring cycle)
Measuring frequency: Continuous 7 measurements per second
Number of flashes per measurement: 35 flashes (1 measurement cycle)
Measuring area: 177.25 cm² (27.5 in²)
Spectral range: 400 nm – 700 nm
Gloss content: Excluded
Wavelength resolution: < 3 nm
Effective bandwidth: 10 nm equivalent triangular
Reporting interval: 10 nm
Photometric bandwidth: 0 to 150 %
Light source: LED combination module, full spectrum
Lamp life: 5 years
Spectrometer: Polychromator with 256-element diode array; concave, holographic grating
Height sensor resolution: 0.1 mm
Device compliance: Δ E*≤ 0.30 CIE Lab (Avg) to CCSII (BCRA) tile set
Spectrophotometric repeatability: Δ E*≤ 0.025 CIE Lab on white tile
Data views: Spectral Data, Spectral Plot, Trend Plot, EZ View, Colour Plot, Colour Data Plot
Other features: pass/fail colour alarm, time/date stamp, auto-naming/saving, data backup/restore
Colour scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ
Colour difference scales: ΔL*a*b*, ΔLab, ΔL*C*h, ΔYxy, ΔXYZ
Colour difference indices: ΔE*, ΔE, ΔE CMC, and ΔE 2000
Memory: 8 GB (> 1 million measurements with images)
Standard light types: A, C, D50, D55, D65, D75, F02, F07, F11, TL84, ULT30, ULT35
Observer functions: 2° and 10°
Languages: English, Japanese, German, Chinese
External software: Compatible with EasyMatch QC and EasyMatch QC-ER (Electronic Records) quality control software
- E313 Weißgrad,
- Tint
- E313 Gelbgrad
- D1925 Gelbgrad
- Y Brightness
- Z %
- 457 nm Brightness
- Baking Contrast Units
- HCCI (HunterLab Coffee Color Index), SCAA Standard (Specialty Coffee Association of America)
USB OTG: Connection to printer, keyboard and mouse
Front panel USB: 2.0 bidirectional, data import/export via hard disk
Ethernet RJ45: save, stream (LIMS/SPC systems), print or send data directly by e-mail
Remote Access Support: Integrated support tool (internet-based)
Dimensions:
- Height: 56 cm (22 in)
- Width: 38 cm (15 in)
- Depth: 51 cm (20 in)
- Weight: 23 kg (50 lbs)
Display: High-resolution touchscreen (resolution 1280×800)
Power supply: 100 to 240 VAC, 47 to 63 Hz, 24 VDC (3.75A 90W)
Working conditions: 4° to 38°C (40° to 100° F), 10 % – 85 % relative humidity. Air humidity
Storage conditions: -20° to 65°C (-5 to 150º F), 10 % – 90 % relative humidity. Air humidity
Scope of delivery:
- Aeros Sensor
- Standard box with calibrated white tile (returnability certificate), black glass and green test tile
- Sample dishes with: 15.2 cm (6 in) diameter and 2.54 cm (1 in) height and 30.5 cm (12 in) diameter and 2.54 cm (1 in) height
- Mains cable (110-240 V)
- Aeros Quick Start Guide
- Aeros User Guide on CD
