MiniScan-EZ-HunterLab

Spectrophotometer
MiniScan EZ

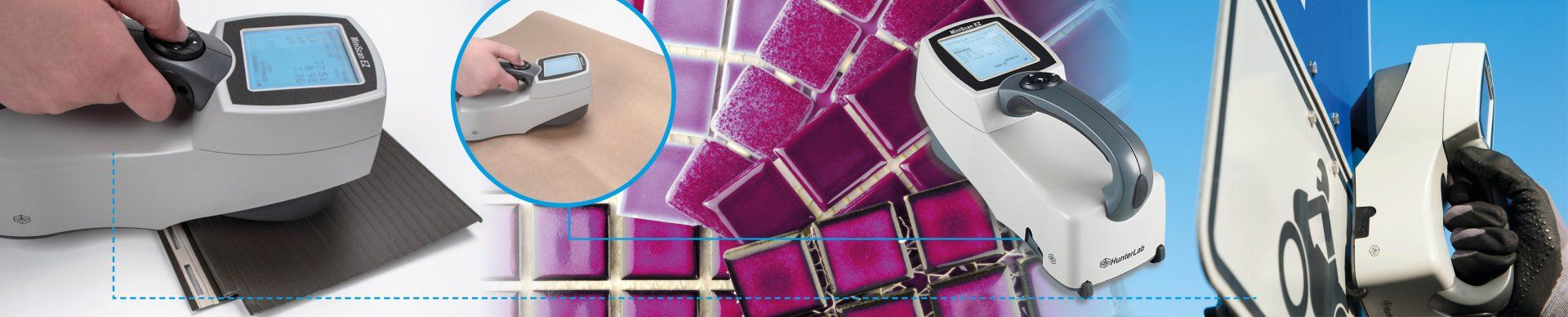

Portable spectrophotometer for color measurement in reflection
This small lightweight makes a big impression: it shows size on site and determines color values precisely. Indoors or outdoors, wherever you need to determine color values. Available in the measuring geometries diffuse/8° and 45/0°.

Download brochure
Request a quote

Your advantages at a glance

The perfect solution for portable color measurement

  • Precision at any location

    No matter where the sample is located, the MiniScan EZ goes with it. It is lightweight and can be used anywhere.

  • Compliant with standards

    The MiniScan EZ complies with DIN standards for safety colours, traffic signs, warning clothing and road markings.

  • Integrated QC software

    The integrated software offers all the required colour indices and metrics, and the results can also be transferred to the PC as an option.
Aeros

  • 45°/0° and diffuse/8°

    The MiniScan EZ is available in two geometries depending on the requirements of the application.

  • Large LCD display

    The large LCD display shows measured values and analyses simply and clearly in many languages.

  • Simple operation

    Easy to operate with one hand at the touch of a thumb. Battery-operated and therefore independent of power connections.

Small. Light. Flexible.

The MiniScan EZ portable dual-beam spectrophotometer measures precisely and reliably at the touch of a button and produces the measurement data in the language of your choice. The clear operating functions make it easy to familiarize yourself with the system and to set up and manage standards and tolerances. Configurations can also be transferred to other MiniScans. In addition, a wide range of accessories increases the range of functions, such as a flexible industrial keyboard, printer and barcode scanner, each of which can be connected directly via USB.
MiniScan+EZ+DataView

Economical working - fast results at all times

The built-in xenon flash lamp delivers maximum precision even with dark samples and exact values with optically brightened color samples. The measurements of the MiniScan EZ are CIE-compliant, which means comprehensive safety and guarantee through spectral data in 10 nm steps. This makes it easy to compare on-site measurements with numerical values at any time – a real standard does not have to be available. All measured values and analyses are available in many languages and are easy to understand.

All MiniScan EZ versions at a glance

Select the MiniScan EZ 4500 for measurements with 45°/0° measuring geometry and the MiniScan EZ 4000 for diffuse/8° measuring geometry.

MiniScan EZ 4500L

With a measuring aperture of 31.8 mm and 25.4 mm observation area for many measurements, e.g. of fabrics, plates, paper, foils, traffic signs, road markings, warning vests and much more.

MiniScan EZ 4000L

Spherical geometry with 25.4 mm measuring aperture and 20.0 mm observation area for (patterned) samples whose appearance is to be measured independently of gloss and structure.
